Raccordi impianti frenanti per treni

articolo .srp

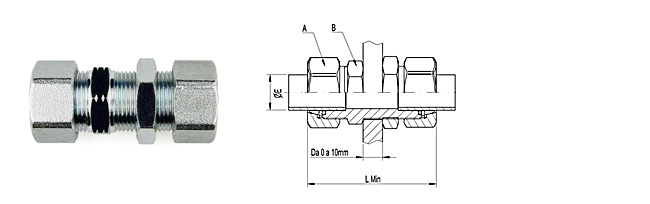

raccordo intermedio passaparete
Ø E LMin ChA ChB CODICE
6 56 18 15 .SRP 06 00
8 58 19 17 .SRP 08 00
10 59 21 19 .SRP 10 00
12 63 25 22 .SRP 12 00
14 69 27 24 .SRP 14 00
15 66 27 25 .SRP 15 00
16 66 29 26 .SRP 16 00
18 66 31 28 .SRP 18 00
20 69 33 30 .SRP 20 00
22 70 37 34 .SRP 22 00
25 75 42 38 .SRP 25 00
28 69 43 40 .SRP 28 00
30 75 47 45 .SRP 30 00
32 75 50 45 .SRP 32 00
35 83 52 47 .SRP 35 00
38 83 54 50 .SRP 38 00
42 83 64 60 .SRP 42 00
45 88 69 65 .SRP 45 00
50 86 70 70 .SRP 50 00
54 94 75 70 .SRP 54 00
1/4” 63 27 27 .SRP 56 00
3/8” 63 30 27 .SRP 60 00
1/2” 66 37 34 .SRP 62 00
3/4” 68 43 40 .SRP 69 00
1” 77 52 47 .SRP 90 00
1 1/4” 80 64 60 .SRP 93 00
1 1/2” 83 69 65 .SRP 97 00
2” 97 82 80 .SRP 95 00
